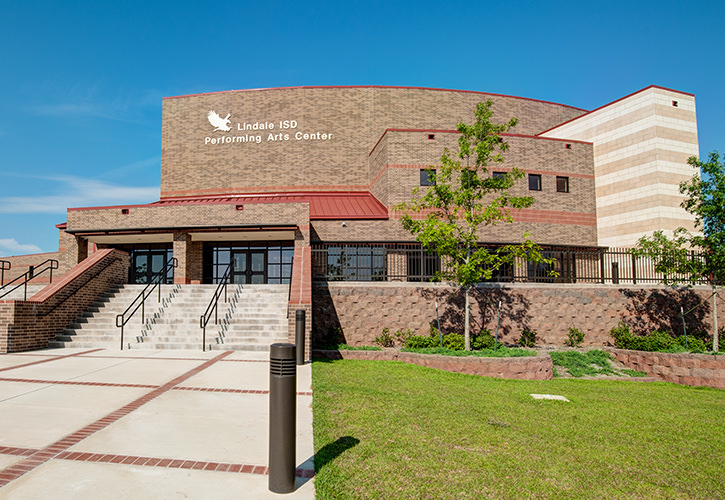

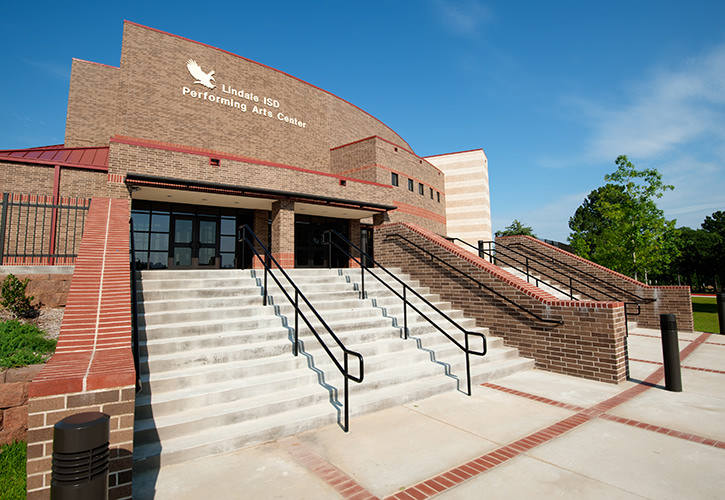

Name: LISD New Performing Arts Center
Location: Lindale, TX
Structural System: Steel Braced Frame, Steel Moment Frame, Composite Steel-Concrete Floor

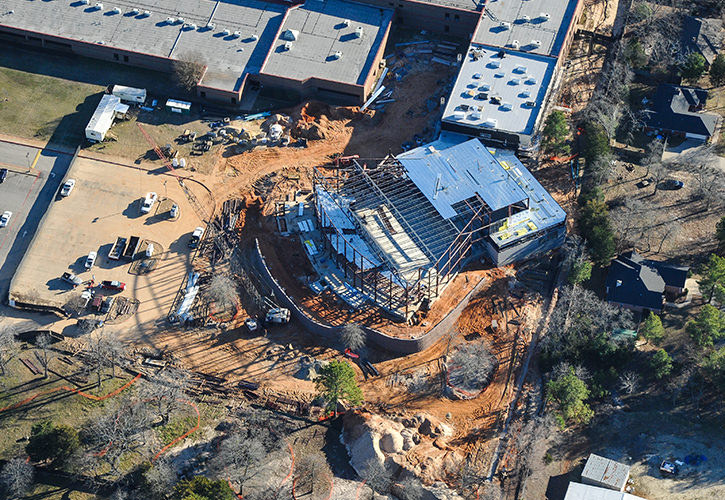

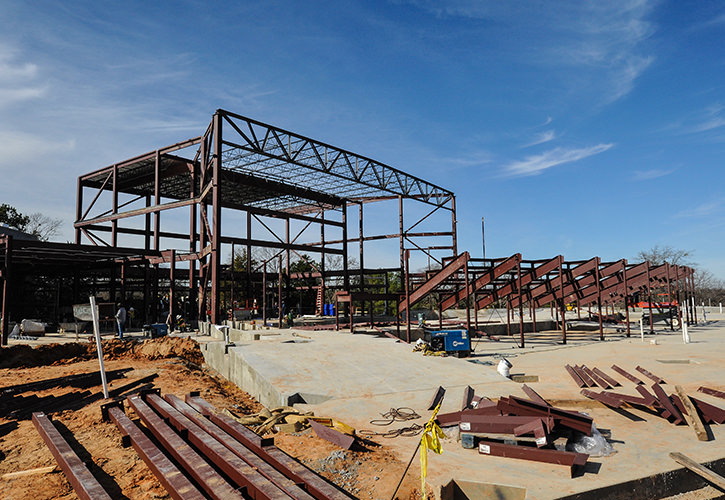

State-of-the-art, performing arts center, unique to East Texas, touts a 1200 seat capacity auditorium, large stage, black-out secondary stage practice room, full catwalk, and additional career and technology classrooms. The layout is a segmented arc radial grid system, with sloped floor seating and tiered elevated seating. The tight sight yielded grades working against the floor slope. Concrete building walls with expanded shale aggregate backfill were employed to economize the wall/foundation design. Keystone site retaining walls were utilized to create an outdoor terrace. Custom double-pitched top chord girder trusses spanned the chord of the arc. The elevated classroom floor utilized composite steel-concrete floor deck framing. Steel braced frames resisted the lateral loads.
